About this product:

3meters corrugated roll forming machine

Power:11kw
Frame :80mm thickness steel
Forming shaft:390mm diameter
Flatting Shaft :350mm diameter

Drive way: gear box

Product speed :7-15 times/minute(about 2-6 tons /hour)

Voltage:380v ,3 phase (can customized)
Weight: 5 tons
Machine size: 5300mm*2300mm*1600mm)

4meters corrugated roll forming machine

Power:15kw
Frame :80mm thickness steel
Forming shaft:390mm diameter
Flatting Shaft :350mm diameter

Drive way: gear box

Product speed :7-15 times/minute(about 3-6.5tons /hour)

Voltage:380v ,3 phase (can customized)
Weight: 6.7 tons
Machine size: 6300mm*2300mm*1600mm)

Working Flow

Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine working flow:Decoiler-------Feeding-------Roll forming-------Cutting------Finished product

1.Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine Manual Uncoiler:

Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity: 5T

Inner diameter: 500-508mm

2.Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine Feeding Table:

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

3.Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine Main Roll Forming Machine:

Material of rollers: 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding. Plate surface smooth and not easy to be marked when it is being stamped

4.Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine Hydraulic System:

Power: 11KW, Hydraulic oil:40#.

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

5.Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine Shearing Mechanism: It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12, quenching treatment.

6.Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine Computer Control Cabinet: The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

Product Description

Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine:

The tiles produced by this Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.

Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine Usage:Put the raw material(steel plate) through the beach to manufacture and process,

it can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron.

Our Services

Our Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine products

Within in one year if any parts go broken we will send new ones to replace for free,after the warranty period,we will help you repair the machine ,you only responsible for the labour and parts if the machine have some problems.

Packaging & Shipping

Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine package: nude, the computer controlling part is packed with water proof cloth.

Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine packed 20 feet container, it fit for ocean shipping. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.

Application

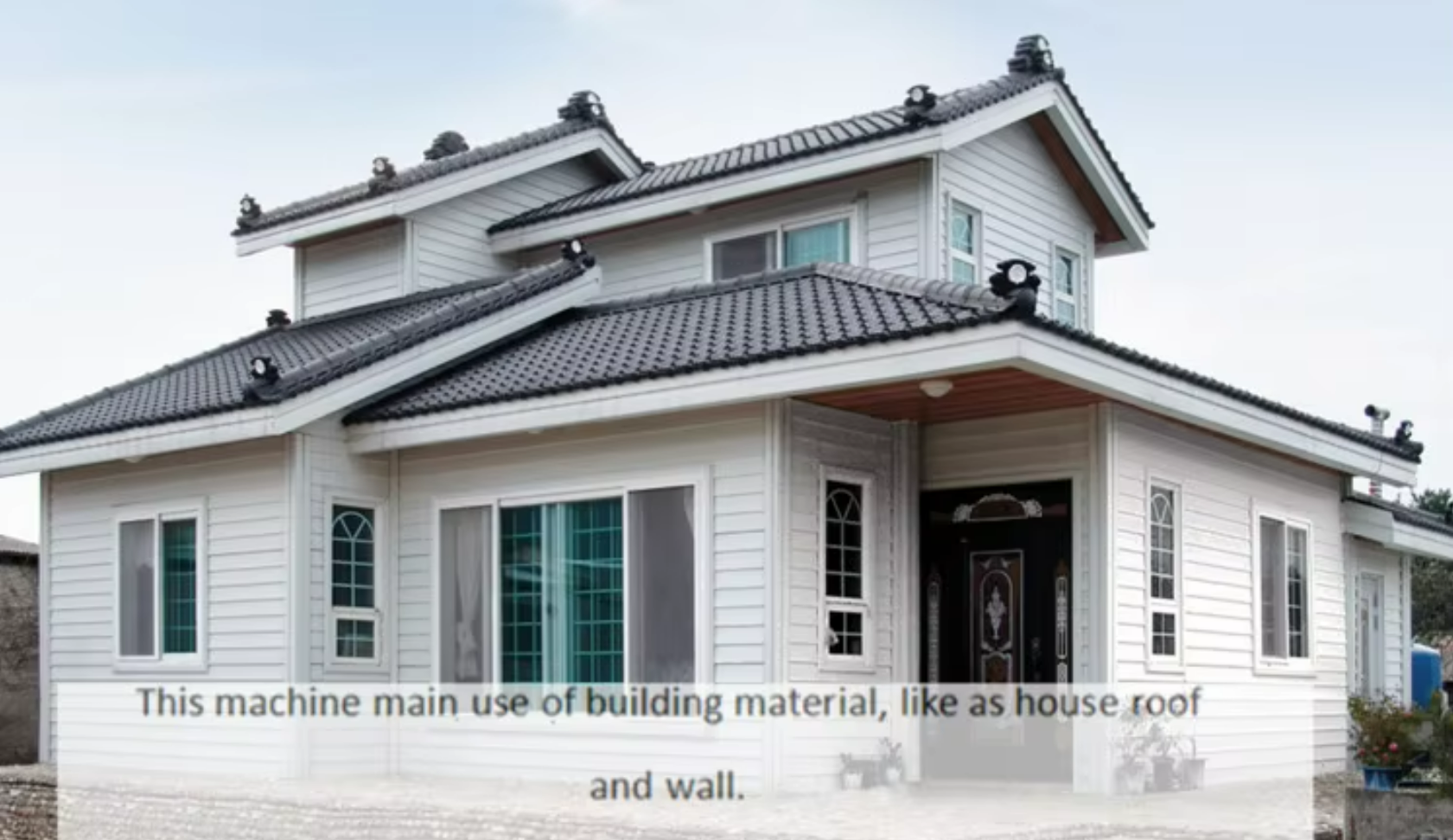

This Round wave making machine barrel drum type metal roofing sheet forming machine corrugated steel profile roll forming machine wide application. It produce building material so It is usually use for construction. To be more precise that's widely used in various industrial factory ,beauty spot, holiday village building, hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.
